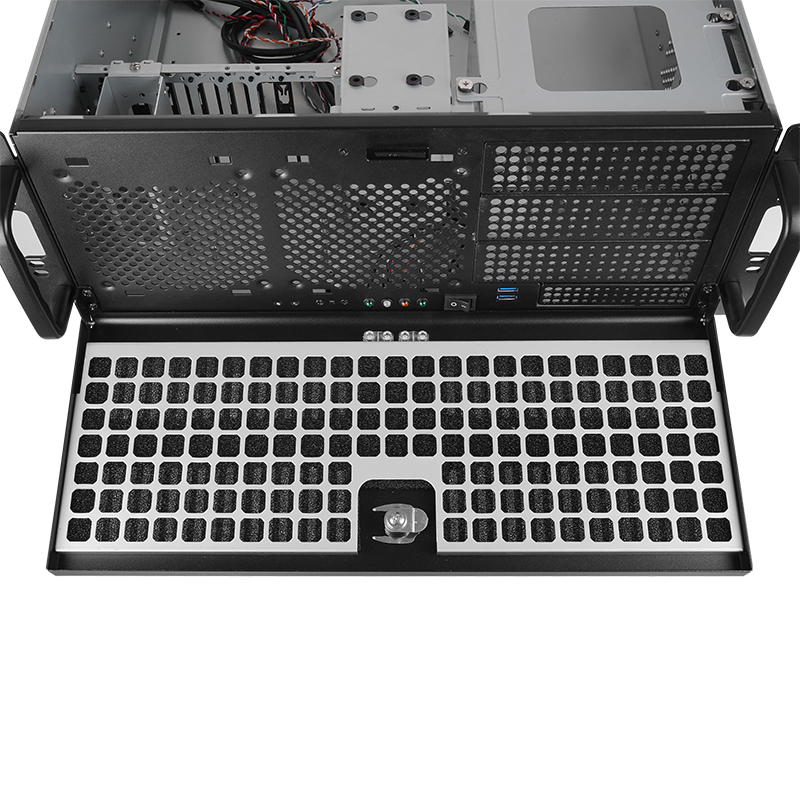

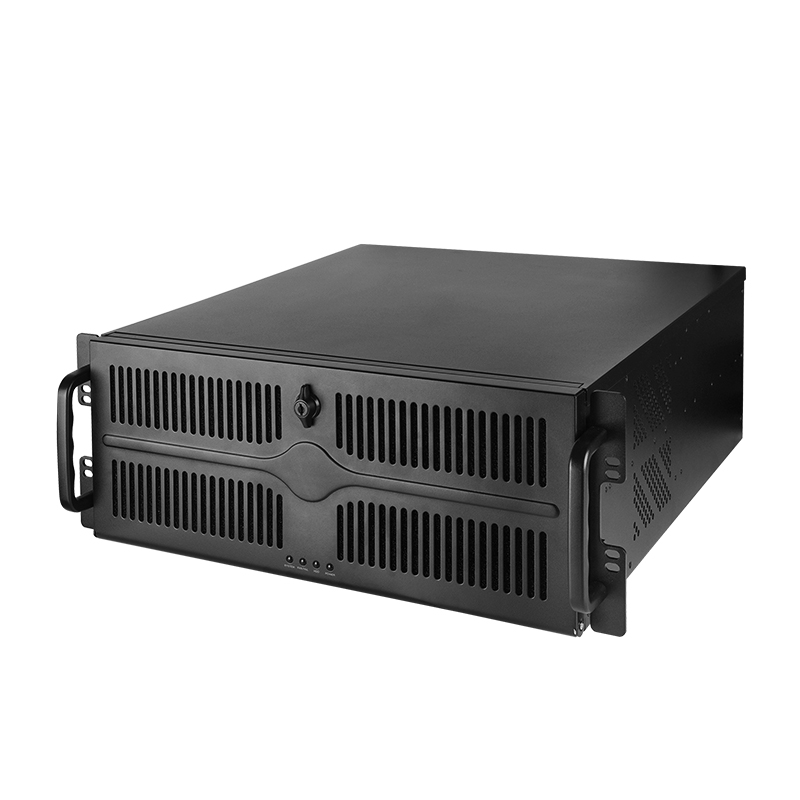

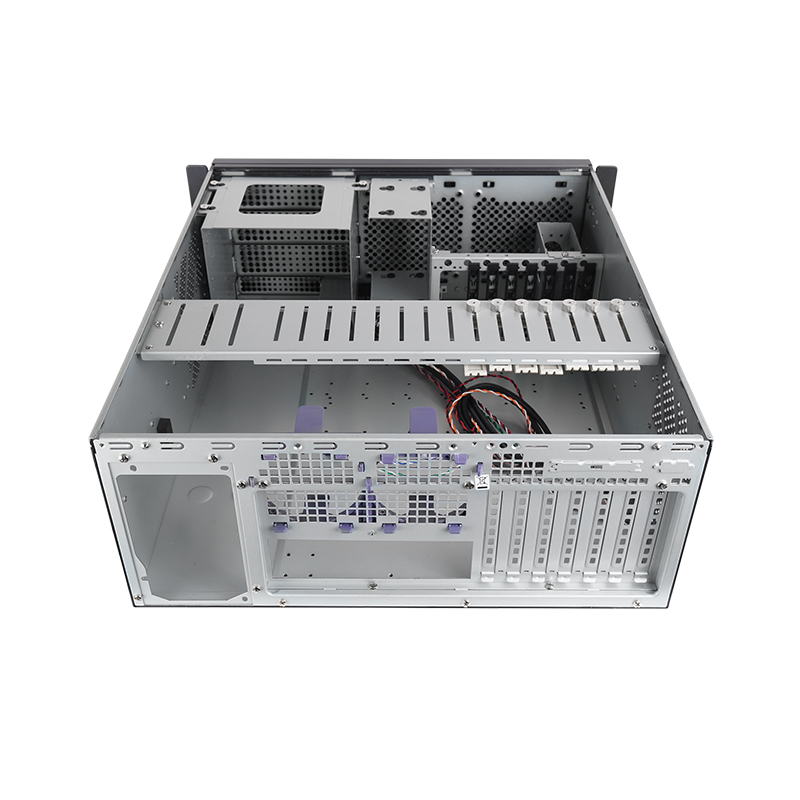

* The UNC-409S-B is a compact 4U ATX rackmount case, with a short depth of only 482mm, while able to install ATX motherboards. The robust build quality with 1.2mm thick SECC steel ensures good protection of the hardware and serves as a reliable and flexible long-term solution. Sufficient cooling options with 2x 120mm front and 2x 80mm rear installation of optionally available fans are provided. Two fast USB 3.1 ports in the front panel add to the features on offer with this chassis.
Color : Black
Material : 1.2mm SECC
Motherboard support : Mini ITX, mATX, ATX
Dimension (DxWxH) : 482mm x 480mm x 177.5mm
Drive bay external : 3x 5.25” and 1x 3.5”
Drive bay internal : 2x 3.5” and 3x 2.5”
Power supply : PSF-400B (400W) Standard ATX PSU or installation of a 1+1 redundant PSU with included mounting kit
Front I/O : 2x USB 3.0 (USB3.2 Gen 1)
Scope of delivery : screw set, clamp-down bar for PCI-E cards
Expansion slots : 7
Cooling Compatibility : Front: 2x 120mm fan / Rear: 2x 80mm fan
CPU cooler height (max.) : 140mm
VGA card length (max.) : 330mm
