DJI Mini 4 Pro (DJI RC 2) (CP.MA.00000732.01)

Χαρακτηριστικά

Συσκευασία με Χειριστήριο

Ναι

Σύνδεση με Κινητό / Tablet

Ναι

Mini Drones

Ναι

Kit

Standard

Model

DJI Mini 4 Pro

Μοντέλο Χειριστηρίου

DJI RC 2

Περιεχόμενα Συσκευασίας

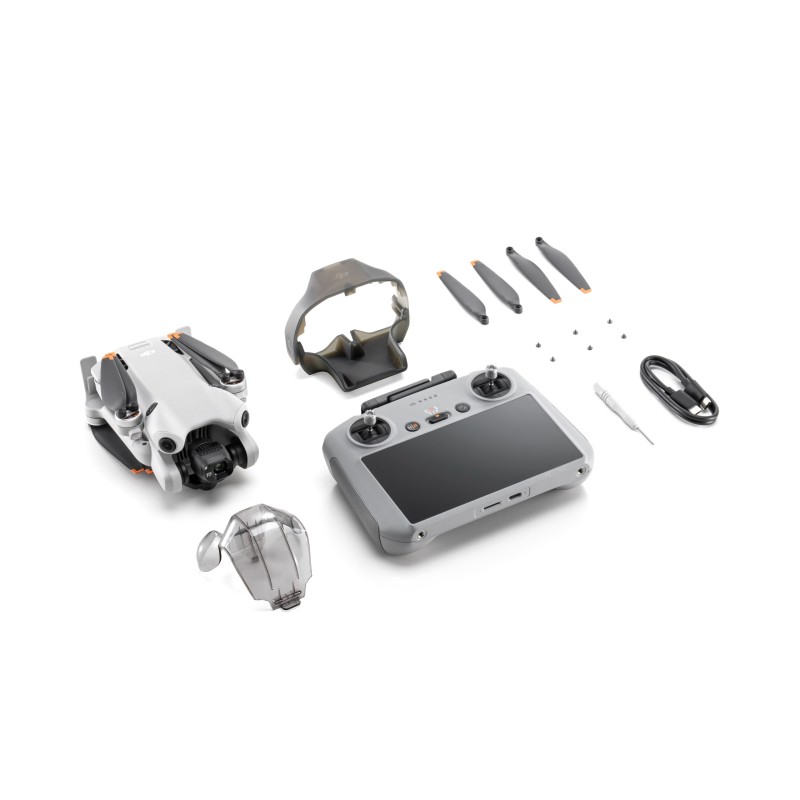

DJI Mini 4 Pro × 1 / DJI RC 2 Remote Controller × 1 / Intelligent Flight Battery × 1 / Spare Propellers (Pair)  × 1 / Screws × 6 / Screwdriver × 1 / Type-C to Type-C PD Cable × 1 / Gimbal Protector × 1 / Propeller Holder × 1

Aircraft

Βάρος απογείωσης

‌< 249 g

Διαστάσεις

Folded (without propellers): 148×94×64 mm (L×W×H) / Unfolded (with propellers): 298×373×101 mm (L×W×H)

Μέγιστη ταχύτητα ανόδου/καθόδου

5 m/s (S Mode) / 5 m/s (N Mode) / 3 m/s (C Mode)

Μέγιστη οριζόντια ταχύτητα

16 m/s (S Mode) / 12 m/s (N Mode) / 12 m/s (C Mode)

Μέγιστο ύψος απογείωσης

With DJI Mini 4 Pro Intelligent Flight Battery: 4000 m / With DJI Mini 3 Series Intelligent Flight Battery Plus: 3000 m

Μέγιστος χρόνος πτήσης

34 minutes (with Intelligent Flight Battery) / 45 minutes (with Intelligent Flight Battery Plus)

Μέγιστος χρόνος αιώρησης

30 minutes (with Intelligent Flight Battery) / 39 minutes (with Intelligent Flight Battery Plus)

Μέγιστη απόσταση πτήσης

18 km (with Intelligent Flight Battery) /  25 km (with Intelligent Flight Battery Plus)

Max Wind Speed Resistance

10.7 m/s

Max Pitch Angle

35°

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering Accuracy Range (windless or breezy)

Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning) / Horizontal: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning)

Εσωτερική μνήμη

2 GB

Class

C0 (EU)

Κάμερα

Image Sensor

1/1.3-inch CMOS, Effective Pixels: 48 MP

Φάκος

FOV: 82.1° / Format Equivalent: 24 mm / Aperture: f/1.7 / Focus: 1 m to ∞

ISO Range Video

Normal and Slow Motion:100-6400 (Normal) 100-1600 (D-Log M) 100-1600 (HLG) / Night: 100-12800 (Normal)

ISO Range Photo

12 MP: 100-6400 / 48 MP: 100-3200

Ταχύτητα κλείστρου

12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) / 48MP Photo: 1/8000-2 s

Μέγιστο μέγεθος εικόνας

8064×6048

Photo Format

JPEG/DNG (RAW)

Video Resolution

H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps

Video Format

MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Color Mode and Sampling Method

Normal: 8-bit 4:2:0 (H.264/H.265) / HLG/D-Log M: 10-bit 4:2:0 (H.265)

Digital Zoom

12MP Photo: 1-3x / 4K: 1-3x / FHD: 1-4x

Gimbal

Stabilization

3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range

Tilt: -135° to 80° / Roll: -135° to 45° / Pan: -30° to 30°

Controllable Range

Tilt: -90° to 60° / Roll: -90° or 0°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Sensing

Sensing Type

Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft

Forward

Measurement Range: 0.5-18 m / Detection Range: 0.5-200 m / Effective Sensing Speed: Flight Speed ≤ 12 m/s / FOV: Horizontal 90°, Vertical 72°

Backward

Measurement Range: 0.5-15 m / Effective Sensing Speed: Flight Speed ≤ 12 m/s / FOV: Horizontal 90°, Vertical 72°

Lateral

Measurement Range: 0.5-12 m / Effective Sensing Speed: Flight Speed ≤ 12 m/s / FOV: Horizontal 90°, Vertical 72°

Upward

Measurement Range: 0.5-15 m / Effective Sensing Speed: Flight Speed ≤ 5 m/s / FOV: Front and Back 72°, Left and Right 90°

Downward

Measurement Range: 0.3-12 m / Effective Sensing Speed: Flight Speed ≤ 5 m/s / FOV: Front and Back 106°, Left and Right 90°

3D Infrared Sensor

Measurement Range: 0.1-8 m (reflectivity > 10%) / FOV: Front and Back 60°, Left and Right 60°

Video Transmission

Video Transmission System

O4

Live View Quality

Remote Controller:  Up to 1080p

Transmitter Power (EIRP)

2.4 GHz / 5.1 GHz / 5.8 GHz

Max Transmission Distance (unobstructed, free of interference)

FCC: 20 km / CE: 10 km / SRRC: 10 km / MIC: 10 km

Max Transmission Distance (unobstructed, with interference)

Strong Interference: urban landscape, approx. 1.5-4 km / Medium Interference: suburban landscape, approx. 4-10 km / Low Interference: suburb/seaside, approx. 10-20 km

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: approx. 0-0.5 km / Low Interference and Obstructed by Trees: approx. 0.5-3 km

Max Download Speed

O4: 10 MB/s (with DJI RC-N2) / 10 MB/s (with DJI RC 2) / Wi-Fi 5: 30 MB/s

Lowest Latency

Aircraft + Remote Controller: ~ 120 ms

Μπαταρία

Συμβατή μπαταρία

DJI Mini 4 Pro Intelligent Flight Battery, DJI Mini 3 Series Intelligent Flight Battery Plus

Χωρητικότητα

Intelligent Flight Battery: 2590 mAh / Intelligent Flight Battery Plus: 3850 mAh

Τύπος

Li-ion

Χρόνος φόρτισης Intelligent Flight Battery

Φόρτιση στο Drone: ~ 70 λεπτά / Φόρτιση στο Charging Hub: 58 λεπτά

Χρόνος φόρτισης Intelligent Flight Battery Plus

Φόρτιση στο Drone: ~ 101 λεπτά / Φόρτιση στο Charging Hub: 78 λεπτά

Συνιστώμενος φορτιστής

DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)
