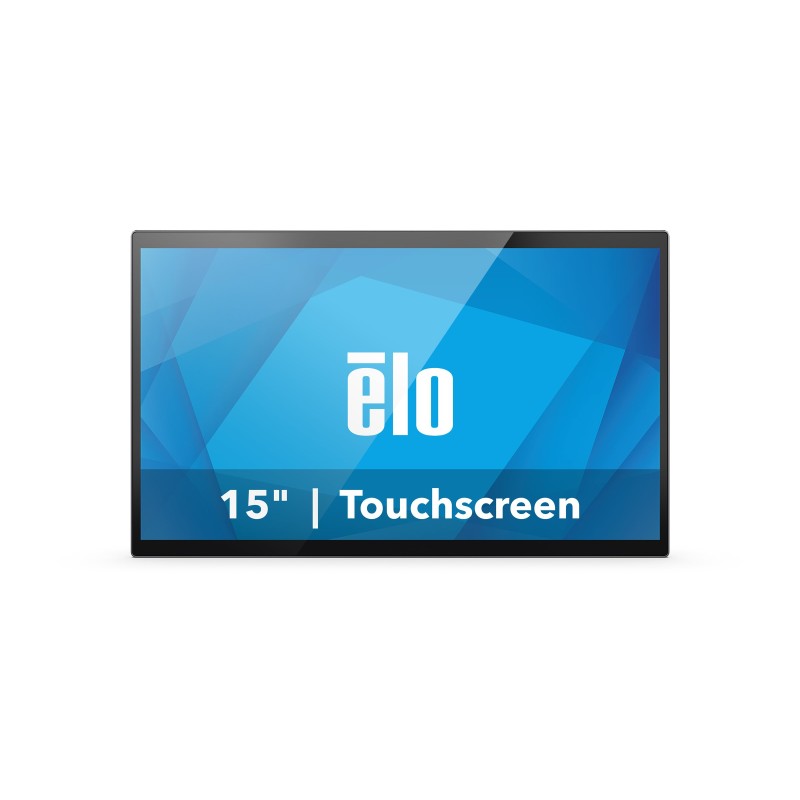

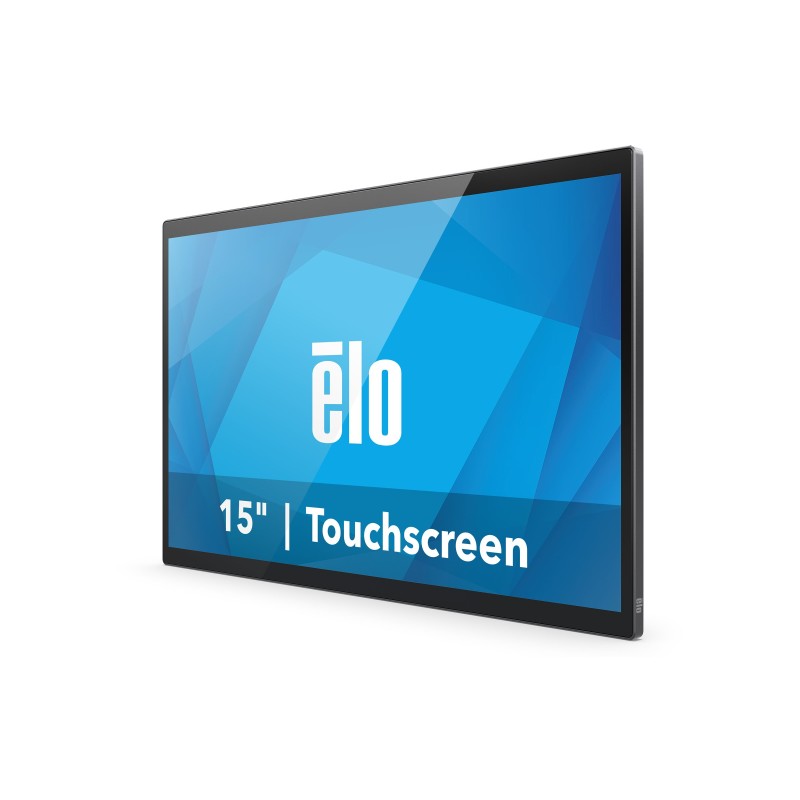

ELO E968313 1504LS 15 Inch Touch Monitor (E968313)

E968313

Dark Gray Metallic

PCAP (Projected Capacitive) - 10 Touch

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55'' x 7.62'' / 344.16 mm x 193.59 mm

1920 x 1080

640x480 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.2 million

Panel: 350 nits; TouchPro PCAP: 315 nits

20 msec

1000:1

USB

Anti-glare

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Touch Through, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

USB Type-C connector (for power, video and touch)

2 x 2W internal speakers

USB Type-C connector

Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Power Delivery compatible via USB Type-C connector

ON (Default - 100% Brightness): 8W
SLEEP: 0.8 W
OFF: 0.15 W

Without VESA Adapter: 14.16" x 8.61" x 0.59" / 359.73 mm x 218.82 mm x 14.97 mm
With VESA Adapter: 14.16" x 8.61" x 0.79" / 359.73 mm x 218.82 mm x 19.97 mm

17.01" x 3.66" x 11.61" / 432 mm x 93 mm x 295 mm

2.45 lbs / 1.11 kg

4.21 lbs / 1.91 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)

50,000 hours demonstrated

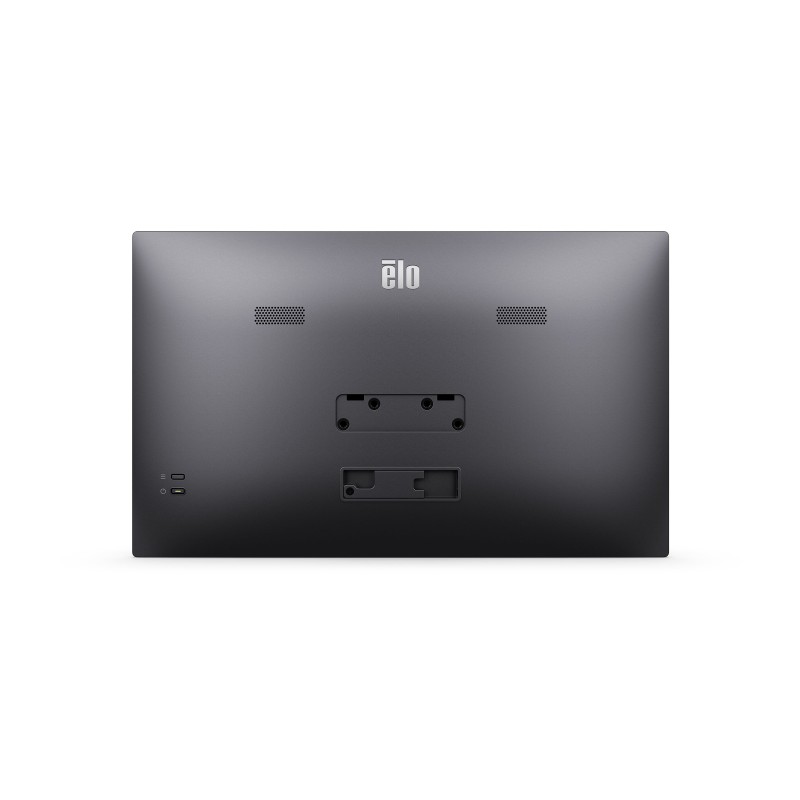

VESA via 4-hole 75mm mounting adapter on rear of unit.

Energy Star 8.0
TUV Rhineland (Low Blue Light)
Power collection function via DDCCI
