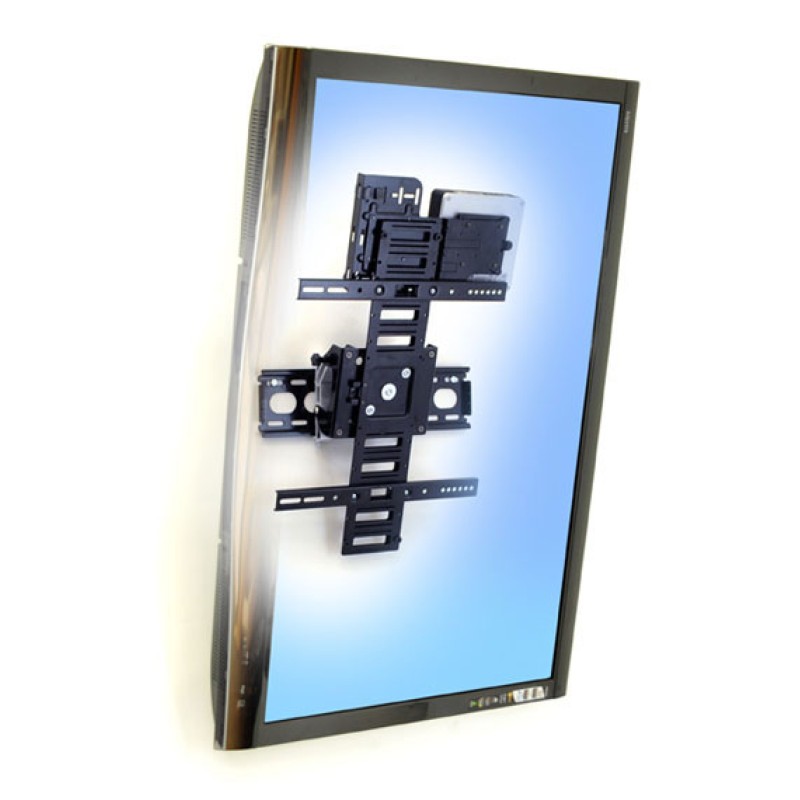

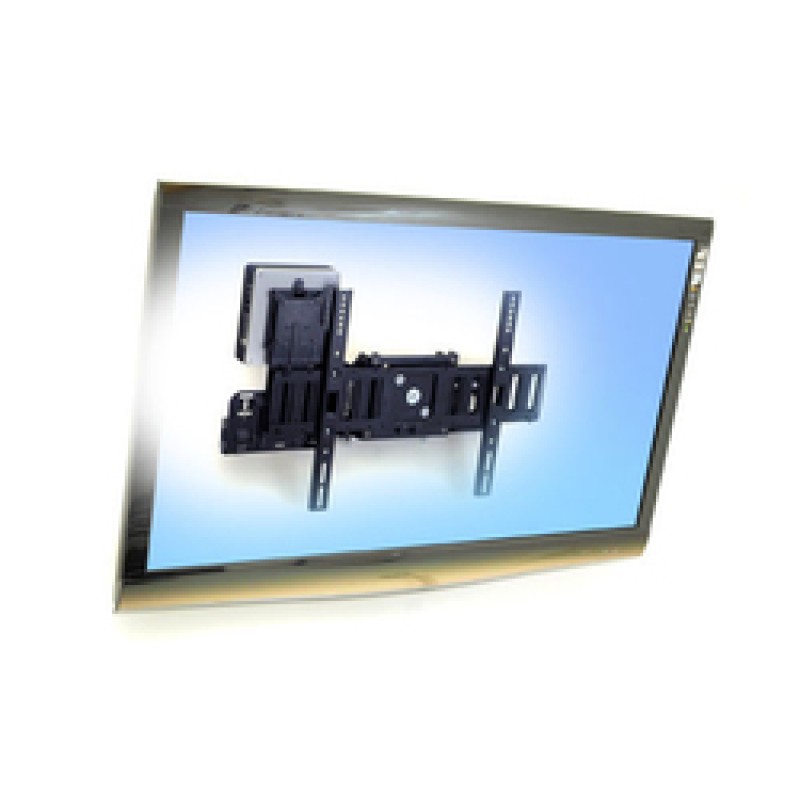

Ergotron SIM90 Signage Integration Mount (60-600-009)

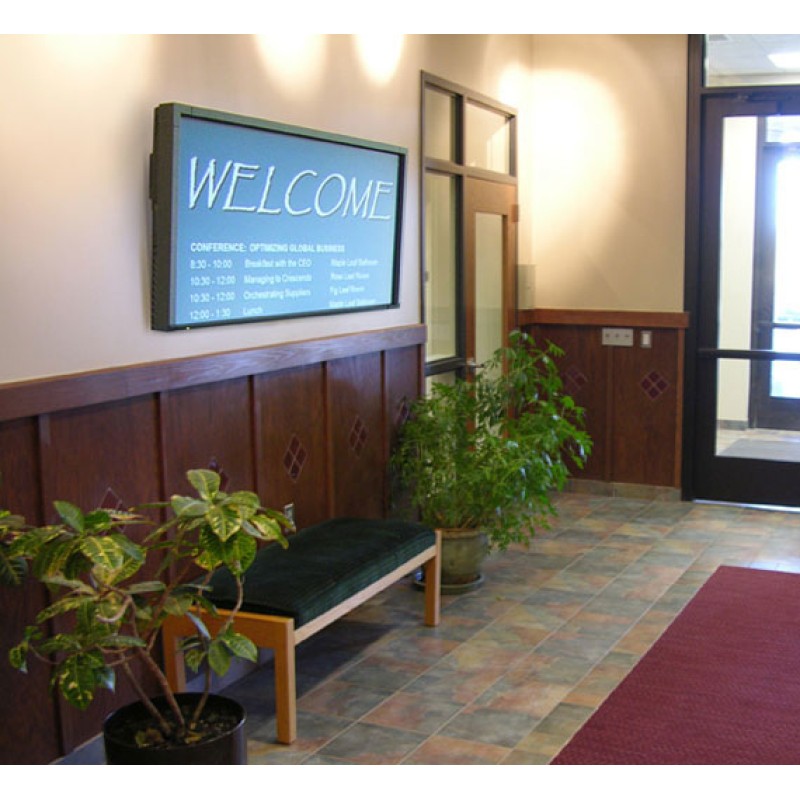

 Complete wall mount solution for digital signage applications

Specification

Cable Management     Cable Management System (CMS)

Features     Rotating, portrait to landscape movement

Product Type     Mounting kit - wall-mountable

Mounting Components     Wall bracket, fasteners, bracket, power block bracket

Tilt     15° (Smooth continuous display tilt range from 0° to 15° forward; Tilt range may be restricted when displays are in portrait mode )

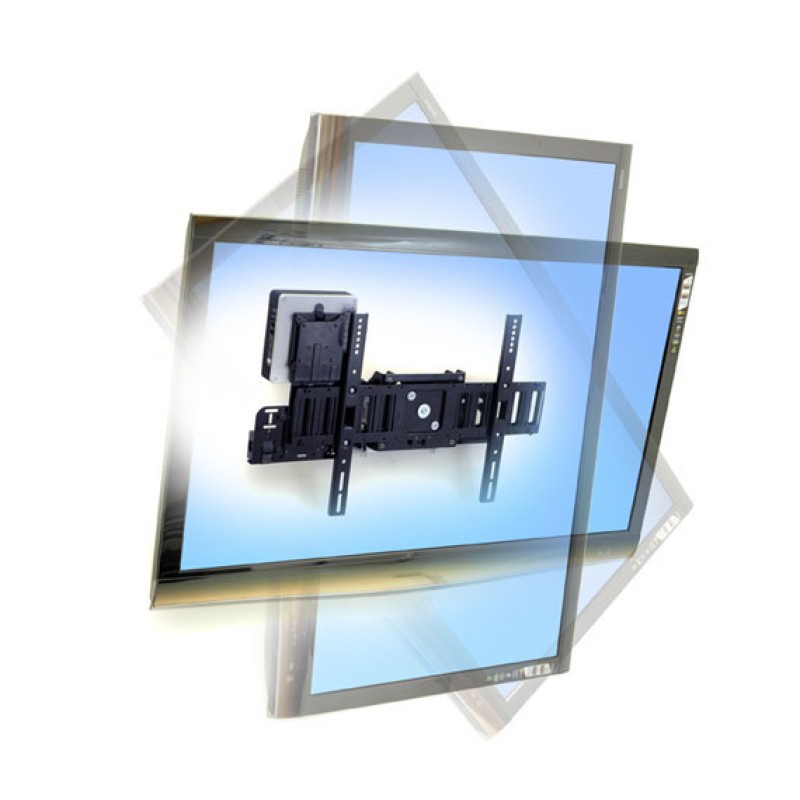

Rotation     90°  (Easily rotate display to either a portrait or landscape orientation without removing the display )

Recommended Use     LCD display

Recommended Display Size     From 32"

Profile off the wall  12 cm

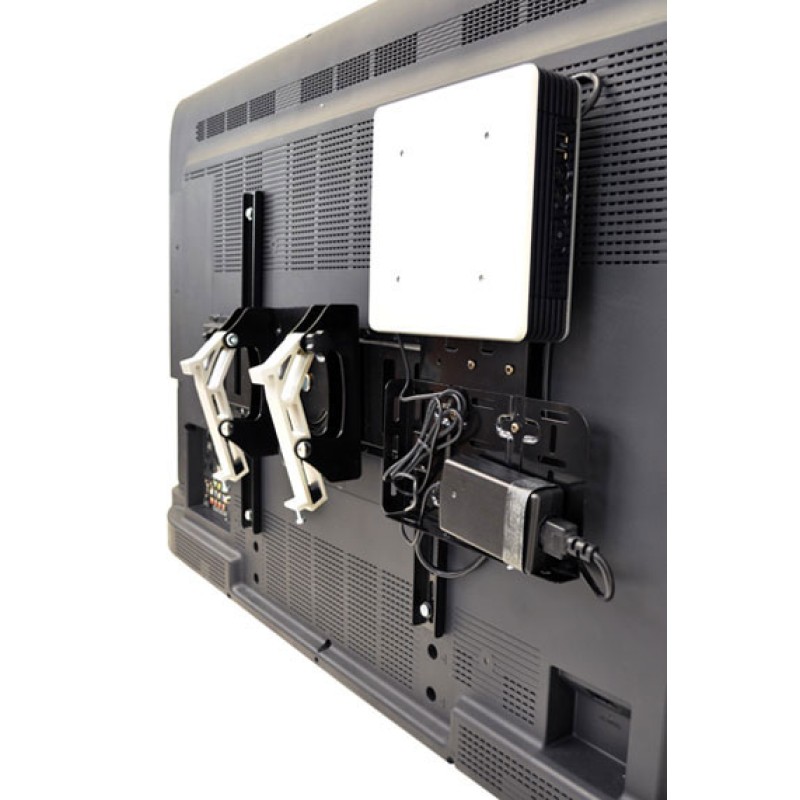

CPU Dimension     Maximum CPU size (W x H x D) = 34.3 x 25.4 x 6.6 cm, up to 3.2 kg. Power brick maximum weight  1.4 kg

Flat Panel Mount Interface     200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 600 x 200 mm, 300 x 200 mm, 500 x 200 mm, 500 x 400 mm, 440 x 200 mm, 440 x 400 mm

Max Load Weight     47.6 kg

Mounting Stud Centers     16"

Colour     Black

Includes wall and display brackets, quick-release VESA-CPU mount/power brick bracket, hardware fastener kit
